Nohken Model FP

Pneumatic Level Sensor FP

Features
  • Low Cost: Requires only a standard 1/2 pipe in a material compatible with liquid.
  • Simple Installation: Requires only a G1 connection at the top of the tank.
  • Reliable: The FP employs a minimum of moving parts. The diaphragm moves a maximum of 2mm. No moving parts are incontact with the liquids.
  • Long life expectancy: The FP is designed for over 200,00 operations.
Model FP-1A FP-1S FP3 FP510
Application Open tanks or vessels
Mounting G1 Male
Operating Temperature 0 to 70 ℃ 0 to 60 ℃
Housing Material ADC12 PMG AC 4A
Diaphragm Material CR FPM/FKM CR CR
Pipe Length 200mm to 5000mm 200mm to 3000mm
Withstand Pressure of diaphragm 0 to 100 kPa
Category: Liquids Pneumatic
Nohken Model R7

Rotating-paddle Level Sensor R7

Features
  • Miniature size
  • Simple torque adjustment
  • Reliable design
  • Easy maintenance and repair
  • Low cost
Model R7-Z R7-ZL R7-X R7-XL R7-XT
Mounting G3/4
Supply Power 24,100,110,120,200,240V AC 50/60Hz
Contact Rating 1 SPDT 250V 3A AC/30V 4A DC (Resistive)
Operating Temperature Housing -10 to 45 ℃
Operating Temperature Detection Part -10 to 70 ℃ -10 to 120 ℃
Housing Material ADC12 and ABS
Mounting Part Material Brass Galvanized
Spindle Material 304SS
Paddle Material PC or 304SS
Seal Material NBR, PTFE
Cable Entry G1/2 -
Cable - 5-core cable, 300mm ( ± 10.5 VCTF, 0.5mm2) (
Protection IP65 IP40
Motor Rotation 1rpm (50Hz) or 1.2rpm(60Hz)
Life Expectancy 1 x 105 Operations
Category: Solids Motor-Torque Rotating-paddle
Nohken Model OL

Miniature Float Sensor OL

Features
  • Compact Size
  • Low Cost
  • Reliability / Long Life switch life
  • Can be used in wide range of liquids
  • Perfect solution for standard assembly parts
Model OLV-2A OLV-2P OLV-2F OLV-5 OLV-5UN OLH-3, OLH-10
Stem Material Polyacetal PP PVDF 316SS 316SS PP
Float Material BUNA Foamed PP PVDF 316LSS 316LSS PP*
Retainer Material 316SS PP PVDF 316SS 316SS PP
Operating Temperature -10 to 90 ℃ -10 to 100 ℃ -10 to 100 ℃ -10 to 90 ℃ **
Maximum Pressure 1MPa 2MPa 2MPa 1MPa
Mounting Type Vertical Vertical Horizontal
Switch Rating 50VA
Lead Wires #22AWG, 300mm or 1000mm
Minimum SG 0.6 0.85 0.9 0.8
Life Expectancy 1 x 107 Operations
Category: Liquids float
Nohken Model LS

Miniature Float Sensor LS

Features
  • Compact Size
  • Low Cost
  • Reliability / Long Life switch life
  • Can be used in wide range of liquids
  • Perfect solution for standard assembly parts
Model LS11P LS11R LS12P LS12R
Stem Material PP
Float Material Foamed PP BUNA Foamed PP BUNA
Retainer Material 316SS
Operating Temperature -10 to 90 ℃
Maximum Pressure 1MPa
Mounting Type Vertical
Switch Rating 10VA, 50VA
Lead Wires #22AWG, 300mm or 1000mm
Minimum SG 0.9 0.7 0.9 0.7
Life Expectancy 1 x 107 Operations
Category: Liquids float
Nohken Model FQ

Cable Suspended Float Sensor FQ

Features
  • One float gives a latched signal between two different levels
  • Differential and switch level points are easily field adjustable
  • Unique "tumbling" action eliminates chatter
  • Works in dirty liquids
  • Reliability/Long switch life
  • Easy installation
Model FQ-6 FQ-8 FQ-66 FQ-88
Operating Temperature * -10 to 50 ℃
Maximum Pressure 200kPa.
Minimum S.G. 0.7 0.9
Cable Length 6 Meter (Max 20 Meter)
Life Expectancy 1 x 105 Operations
Cable Material ⌀ 6.5 PVC ⌀ 8.1 PVC
Float Material PP (Float Cap ABS) ABS
Housing Material ABS PVC
Weight Material Grey Iron Casting (black) 3kg PVC (Steel)
Rope Material PE
Mounting JIS10K100A (4 holes)
Protection IP45 **
Maximum Detection Points 6
Category: Liquids cable
Nohken Model FR

Magnetic Float Sensor FR(reed switch) and OLV

Features
  • Custom manufactured to user specifications
  • Switch points are field-adjustable (FA series)
  • Reliable
  • Wide choice of materials
  • Long switch life
  • Durable float
Model FR-20 FR-21 FR-22 FR-23 FR-24 FR-25
Mounting Type Flat Face Flange Raised Face Flange Side Flange Samitary Ferrule Plug Mounted from Outside Plug Mounted from Inside
Housing Material PVC / ADC12 PVC / ADC12 PVC / ADC12 ADC12 PVC / ADC12 ADC12
Wetted part Material PPC,PP,CPVC / SS,PVDF,PTFE PVC,PP,CPVC / SS SS PVC,PP,CPVC / SS PVC,PP,CPVC
Protection IP43* / IP65 IP65 IP43* / IP65
Mounting JIS10K50A FF JIS10K50A RF JIS10K50A FF ISO 2.5S R3 " / R2 " R1 "
Cable Entry G3/4 G3/4 300mm, 22AWG
Maximum Length 3900mm / 3900 1500 for PVDF 2000mm / 3900mm 3900mm 2000mm for SS, 1000mm for Plastics
Category: Liquids float
Nohken Model FM

Magnetic Level Switch FM, HM (Microswitch)

Features
  • Simple Installation
  • Durable Float
  • Stainless Steel Construction
  • Reliability/Long switch life
Model FM-11 FM-12 FM-13 FM-14 FM-16 HM-10
Description Standard Double Contact Thread Mounting Long Stem Interface Detection Micro Switch
Mounting JIS5K40A R1-1/2 JIS5K40A JIS5K65A
Switch Rating 50VA 0.5A 300V AC, 50W 0.5A 300V DC Max (Resistive)
Operating Temperature * -10 to 120 ℃ -10 to 80 ℃ -10 to 120 ℃
Maximum Pressure 2.5 MPa. 3 MPa.
Mounting Material 304SS
Shaft and Float Material 316SS 316SS, Epoxy Resin
Housing Material ADC12
Cable Entry G3/4
Protection IP44
Minimum S.G. 0.7 0.72 to 1.0* 0.65
Life Expectancy 1 x 107 Operations 1 x 105 Operations
Category: Liquids float
Nohken Model SH

Miniature Float Sensor SH

Features
  • Easy installation on tank side using threaded process connection.
  • Operational for any liquids of specific gravity >0.6.
  • Rotating the sensor reverses switch operation
  • Wetted parts are in corrosion resistant SCS14 (316SS equivalent)
Model SH10
Stem Material 316SS
Float Material 316LSS
Retainer Material 316SS
Switch Rating 50VA AC 0.5A 300V AC
Operating Temperature * -10 to 120 ℃
Maximum Pressure 1 MPa.
Lead Wires #22AWG 300mm.
Minimum SG 0.6
Life Expectancy 1 x 107 Operations
Category: Liquids float
Nohken Model FS

Wide-Differential Float Sensor FS

Features
  • Direct pump control
  • Adjustable ON/OFF switching levels
  • Unaffected by magnetic fields
  • Simple installation.
Model FS-2S
Application Open Tank
Mounting Equivalent JIS5K50A t=2
Contact Rating 1 SPDT, 250V 5A AC, 125V 0.6A DC (Resistive)
Operating Temperature - Housing 0 to 55 ℃
Operating Temperature - Wetted Parts 0 to 80 ℃
Float Material 304SS
Rod Material 304SS
Stopper Material 304SS
Flange Material 304SS
Bellows Material Neoprene (Option: Silicon)
Housing Material Phenol (Cover: Polypropylene)
Cable Entry G3/4
Protection* IP42
Minimum SG 0.85
Operating Differential *60mm to 850mm (at L=1000mm)
Life Expectancy 4 x 105 Operations
Category: Liquids float
Nohken Model FT

Cable Suspended Float Sensor FT

Features
  • Usable in a wide range of liquids
  • Available NO or NC contacts
  • Adjustable switch points
  • Reliable/Long switch life
  • Easy installation
Model FT-2 FT-3 FT-5 FT-7 FT22/FT33/FT55/FT77
Operating Temperature * -10 to 50 ℃
Allowable Impact 500 m/s2
Minimum SG 0.9 0.8
Operational Characteristic FT- ☐ A Up ON 100 ± 15 Up ON 186 ± 40
Operational Characteristic FT- ☐ B Down ON 80 ± 10 Down ON 123 ± 20
Operational Characteristic FT- ☐ C SPDT SPDT
Life Expectancy 2 x 105 Operations
Cable Length 6 meter (Max. 20 meter)
Cable Material ⌀ 8.1 PVC **
Float Material ABS
Housing Material ABS
Flange Material PVC
Weight Material 3kg, PVC (build in steel)
Rope Material PE
Mounting JIS10K100A (4 holes)
Cable Entry G3/4
Protection IP45 ***
Maximum Detection Points 6
Category: Liquids cable
Nohken Model FE

Electrode Level Sensor FE

Features
  • Usable in a wide range of liquids
  • Up to 6 points detection
  • Switch points easily adjusted in field
  • Simple to install and adjust large terminal enclosure for wiring
Model FE2 FE22 FE7 FE8
Description Standard With DD flange Thread Mounting Thread Mounting
Max. Poles 7 6 4 6
Mounting JIS10K100A (4 Holes) JIS10K100A G2 G2
Operating Temperature * -10 to 50 ℃ -10 to 100 ℃ (option 150 ℃ Max) -20 to 60 ℃ -20 to 50 ℃
Maximum Pressure Atmospheric 1MPa Atmospheric
Housing Material ABS ABS or 304SS PF (304SS Cover) PVC
Mounting Material PVC * 304SS * PF (304SS Cover) * PVC
Electrode Material 316SS, NW00010665 (Hastelloy 8*3 equivalent), NW0276 (Hatelloy C*3 equivalent), Titanium ***
Insulation Tube Material Polyolefin *
Cable Entry G3/4
Protection IP45 ** IP43 **
Category: Liquids Electrode
Nohken Model CE

Electrode Level Sensor CE (Electrode band type)

Features
  • Easy to install for the large tanks or vessels
  • 20 meter Max. cable length
  • Switch points easily adjusted in field
  • Up to 6 detection points
Model CE
Operating Temperature -20 to 50 ℃
Maximum Pressure 200kPa
Cable Length 6 meter (Max. 20 meter)
Cable Material 6.5 PVC
Body Material PVC
Electrode Material 316SS, NW00010665 (Hastelloy B*1 equivalent), NW0276 (Hastelloy C* equivalent), Titanium
Housing Material ABS
Weight Material PVC
Rope Material PE
Mounting JIS10K100A (4 holes)
Cable Entry G3/4
Protection IP45 **
Maximum Detection Points 6
Category: Liquids Electrode
Nohken Model MT

Electrical Conductivity Level Sensor MT10

Features
  • Stable operation with build up of scum and slurry
  • High durability
  • Easy operation of relay unit
  • Easy maintenance
Model MT10/1 MT10/3 MT10/Z
Number of Detection points 1 3 6
Operating Temperature 0 to 80 ℃
Cable Material ⌀ 6.5 PVC ⌀ 8.1 PVC ⌀ 6.5 PVC
Body Material PE PE/PVC PE
Electrode Material 316SS
Category: Liquids Conductivity
Nohken Model OX

Optical Interface Measurement Sensor OX

Features
  • Optimizes sludge discharge control
  • No influence from ambient light
  • Eliminates build up and fouling of probes
  • Durable construction
  • Ideal for corrosive liquids
Model OX-10 OX-30 OX-40
Mounting JIS5K65A JIS5K65A
Supply Power 100/200V AC 50/60Hz
Power Consumption Approx. 2.5VA Max.
Relay Output 1 SPDT, 250V 3A AC, 30V 3A DC (Resistive), C-A: Normally Open contact, C-B: Normally Closed contact.
Detection Time Delay Adjustable between 0.5 to 10 seconds
Operating Temperature - Housing -10 to 55 ℃ -10 to 55 ℃
Operating Temperature - Wetted Parts -10 to 70 ℃ -10 to 50 ℃ -10 to 70 ℃
Maximum Pressure 100kPa
Housing Material AC ADC12
Seal Pipe Material FEP
Cable Material PVC
Cable Entry G1/2 G3/4
Protection IP54 IP68 IP65
Fail Safe High or Low by Switch
Connected Converter OX1000 OX1000
Category: Liquids Optical

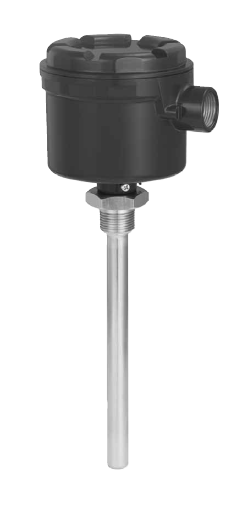

Nohken Model VC

Vibrating Level Sensor VC

Features
  • Suitable to detect powder and grain in a small or middle hopper.
  • Operating temperature up to 150 ℃ as standard.
  • Not affected by the temperature change.
  • Accepts a wide range of input voltage.
Model VC12N VC12F
Measuring Object Powder, Granular material
Mounting R3/4 JIS5K50A FF
Supply power 100 to 240V AC 50/60Hz
Power Consumption Approx. 5VA (100V AC)
Relay Output Non-voltage relay contact (SPDT) 250V 3A AC /30V 3A DC
Detection Time Delay Approx. 3 to 5 seconds for covered Approx. 3 to 5 seconds for free
Operating Temperature - Housing -20 to 60 ℃
Operating Temperature - Vibration Rod -20 to 150 ℃
Maximum Pressure 2 MPa (Except a mounting part)
Concentrated Load 0.55 kN Max. (at the tip of detection pipe)
Maximum Humidity 95% RH
Sensitivity Bulk density of 0.2g/cm2 Min.
Vibration Frequency Approx. 900 to 1100Hz
Housing Material ADC12
Vibration Rod Material 304SS
Cable Entry G3/4
Protection - Housing IP65
Protection - Vibration Rod IP68
Fail Safe High or Low by switch
Indication Green LED for Power status, Red LED for Relay status
Category: Solids Vibrating
Nohken Model VL

Vibrating Level Sensor VL

Features
  • New principle of operation and probe construction (Patent)
  • Withstand up to 150 ℃ (180 ℃ as option.)
  • Fail safe switch is provided
  • Less subject to build up and dead stock
Model VL12N VL12F VL22N VL22F VL32F
Description Standard Pipe Extension Cable Extension
Measuring Object Powder, Granular material
Mounting R1 JIS5K50A FF R1-1/4 JIS5K50A FF JIS5K50A FF
Supply power 100 to 120V AC, 200 to 240V AC 50/60Hz
Power Consumption Approx. 5VA or 3W Max.
Relay Output 1 SPOT, 250V 3A AC, 30V 3A DC (Resistive), C-NO: Normally Open contact, C-NC: Normally Closed contact
Detection Time Delay Approx. 3 to 5 seconds for covered Approx. 3 to 5 seconds for free
Operating Temperature - Housing -20 to 60 ℃
Operating Temperature - Vibration Rod -20 to 150 ℃ (180 ℃ Option) -20 to 70 ℃
Maximum Pressure 2 MPa (Except a mounting part) 1 kPa
Concentrated Load 0.55 kN Max. (at the tip of detection pipe)
Maximum Humidity 95% RH
Sensitivity Bulk density of 0.2g/cm3 Min.
Vibration Frequency Approx. 300 to 500Hz
Housing Material ADC12
Vibration Rod Material 304SS*
Extension Material 304SS* PVC
Cable Entry G3/4
Protection - Housing IP65
Protection - Vibration Rod IP68 IP65
Fail Safe High or Low by switch
Indication Green LED for Power status, Red LED for Relay status
Category: Solids Vibrating
Nohken Model VP

Vibrating Level Sensor VP 11

Features
  • Low-cost piezoelectric vibratory level sensor
  • Easy to use 26mm proximity style housing
  • Not affected by moisture, humidity, or temperature variations
  • Standard transistor output
  • Relay output optional with PR2100/2200
Model VP11N VP11F
Measuring Object Powder, Granular material
Mounting G3/4 ISO 1-1/2S
Supply power 24V DC
Current Consumption Approx. 20mA DC Max.
Relay Output NPN open collector100mA DC Max. Residual voltage 1V Max.
Detection Time Delay Approx. 3 seconds
Operating Temperature -10 to 60 ℃
Maximum Pressure 500kPa
Maximum Humidity 95% RH
Sensitivity Aparent density of 0.2g/cm3 Min.
Body Material 304SS
Diaphragm Material 316SS
Fastener Material Brass
Cable ⌀3x2000mm (3x0.2mm3}, PVC
Protection IP55
Indication Green LED for Power status, Red LED for Relay status, Orange LED for Detected recovery
Category: Solids Vibrating
Nohken Model VF

Flat Face Vibration Level Sensor VF

Features
  • Suitable for low laval detection of middle or large hopper
  • Wide range of sensitivity setting
  • Fail safe switch is provided
  • Accepts a wide range of input voltage

General Description

Vibration Level Sensor VF is to detect presence of powder and granular material at a desired level to send signals utilized for alarm output or control of electromagnetic switches. The vibration plate at the tip of sensor is inserted in the tank to detect the presence of measuring object. Whit minimum inserted length and no mechanical moving parts, VF can achieve high durability.

Category: Solids Vibrating
Nohken Model RB

Rotating-paddle Level Sensor RB

Features
  • Simple torque adjustment
  • Easy maintenance and repair
Model RB20F RB21FT RB21FL/FLV RB21FBV
Description Standard Heat Resistive Pipe Extension Shaft Extension
Measuring Object Powder, Granular material, Pellet
Mounting JIS5K65A (t=5) JIS5K65A (t=6) JIS5K65A (t=6) JIS5K65A (t=5)
Supply Power 100, 110, 200, 200V AC 50/60Hz
Power Consumption Approx. 4W Max.
Contact Rating 1 SPDT, 250V 5A AC, 30V SA DC (Resistive), C-H: Normally Open contact, C-L: Normally Closed contact
Operating Temperature Housing 0 to 45 ℃
Operating Temperature Detection Part 0 to 50 ℃ 0 to 180 ℃ 0 to 50 ℃
Maximum Pressure 20kPa
Housing Material ADC12
Flange Material Steel 304SS 304SS Steel
Shaft Material 304SS
Paddle Material 304SS
Seal Material NBR, PTFE
Cable Entry G1/2
Protection Housing IP55
Protection Detection Part IP45
Motor Rotation 1rpm (50Hz) or 1.2rpm(60Hz)
Life Expectancy 5 x 105 Operations (micro switch)
Category: Solids Motor-Torque Rotating-paddle
Nohken Model CG

Capacitive level sensors CG/CGS/CG65 (phase detection)

Features
  • One push adjusbnent by parameter
  • Various function by microprocessor
  • LCD for operation check
  • Improved function for material build up
  • Outstanding reliability
  • No need to adjust in actual liquid
Model CG-1NH CG-2NH CG-1FH CG-2FH
Mounting G3/4 * JIS5K25A *
Supply Power 100 to 240V AC ± 10%, 50/60Hz
Power Consumption Approx. 5VA Max.
Relay Output 1 SPDT, 250V 3A AC, 30V 3A DC (Resistive), C-NO: Normally Open contact, C-NC: Normally Closed contact
Detection Time Delay Programmable between 0.0 to 25.5 seconds
Operating Temperature - Housing -25 to 60 ℃
Operating Temperature - Electrode -25 to 60 ℃
Maximum Pressure 1MPa
Maximum Humidity 95%RH
Housing Material ADC12
Electrode Material 304SS
Insulator Material PE
O Ring Material FPM/FKM
Cable Entry G1/2
Protection IP65
Fail Safe High or Low by program
Length of electrode 250mm Standard, 2000mm Max.
Category: Solids Capacitive
Nohken Model KRV

Capacitance level sensors KRV

Features
  • No adjustment required
  • High sensitivity with dielectric constant as low as 1.1
  • Ignores coatings and build up
  • Detects solids, liquids, and interface of two immiscible liquids

The KRV series of capacitance sensors are designed for point level detection of liquids, solids, powder, or interface between two immiscible liquids. Radio Frequency sensors are typically used to detect liquids, but have a difficult time with solid or powder mats rials. The KRV series overcome this limitation by having a parallel LC circuit on its oscillator and five switch selected sensitivity ranges. The KRV series easily detect solid and powder materials such as plastic powder/pellet, fly ash, carbon black, and similar substances. The KRV series reliably detect the interface between two immiscible liquids, oil and water as an example. The KRV can be set to operate in water but not in oil. Additionally, the KRV will ignore heavy oily build up on its electrode.
Category: Solids Liquids Capacitive
Nohken Model KSV

Model KSV - For Conductive Medium

Features
  • Ignores heavy conductive build up
  • Single probe/Mechanically strong

The KSV series of capacitance sensors are made specifically for point level detection of conductive medium. Applications include water; chemical solutions, acid based slurries, conductive granules, and sticky liquids.

Build up is one of the most common problems for capacitance sensors. Conventional Radio Frequency sensors solve this problem by using a guard probes (the second or third element to the electrode). But this complicated probe construction tends to make probes easily broken, particularly if twisted in agitated containers. Consequently, conventional RF sensors are installed vertically and limited to a fixed length, foamed in one piece.

The KSV series have overcome 1his limitation by using 1he series resonance circuit and a single electrode. This circuit corrects for conductive build up by measuring its resistance. The single electrode can be mounted in virtually any position and is available with a number of standard mountings.
Category: Solids liquids Capacitive
Nohken Model KSV-9N

Capacitive level sensors KSV-9N

Features
  • Compact and light weight, but integral construction
  • NPN open collector can be directly connected to the relay output
  • Operational indicator is provided
  • Easy to adjust sensitivity by adjusting knob
  • PR21 00-7U is a Power Relay Unit for KSV-9N series
  • 2-SPST relay output and self-holding control are available by using PR2100-7U
Model KSV-9N
Mounting R1
Supply Power 24V DC ± 10%
Current Consumption Approx. 21 mA Max.
Output NPN Open Collector
Oscillation Frequency Approx. 600 KHz
Operating Temperature -10 to 70 ℃ (get rid of dew)
Maximum Pressure 1.57 MPa Max. for electrode
Maximum Humidity 95% RH
Sensitivity 0 to 20 pF for standard, 0 to 100 pF for low sensitivity
Electrode Material 304SS
Plug Material 304SS
Insulator Material POM
Cover Material POM
Nut Material POM
Protection IP67
Length of Electrode 150mm, 300mm, 600mm
Category: Solids liquids Capacitive
Nohken Model CM

Capacitive level sensors CM

Overview

The sensor has mutually isolated two electrodes, one for measurement and the other for grounding. The grounding electrode is electrically continued to the metallic tank. The sensor continuously measures capacitance between the two electrodes to indicate a level. An intrinsically safe model available. (TIIS i3aG5)

Features

Operational in harsh environments. High accuracy measurement of liquids, solids and bulk solids.

Applications

Challenging applications including high pressures and high temperatures. Level measurement of solids and solvents as well as water and oil. (sensitivity: 30 to 200pF F.S.)

Category: Solids Capacitive
Nohken Model MP2000

Continuous Proportioning Controller MP2000

Features
  • Programmable relay outputs for orientation, hysteresis, and fail-safe function.
  • EEPROM stores all parameter value permanently.
  • Volume conversion for volumetric indications.
  • Easy-to-read graphic indication and 4-digit LED.
  • Build-in test circuit for signal ( 4 to 20mA DC)..
Model MP2000
Supply Power 1 00 to 240V AC ±10% 50/60Hz
Power Consumption Approx. 20VA Max.
Output Signal 4 to 20mA DC.
Load Resistance 600 Ω Max.
Alarm Output 4 points (2 points x 2 circuits), 240V 3A AC, 30V 3A DC (Resistive).
Output Power 24 DC.
Input Signal 4 to 20mA DC (Current signal), 0 to 22 kΩ (Resistance signal)
Operating Temperature -5 to 50 ℃
Maximum Humidity 85% RH
Accuracy ± 0.5% F.S.
Material ABS
Protection Non Drip-proof
Mounting Panel mounting, In conjunction with DIN43 700-96x96 (Panel cut-out: 92mmx92mm)
Category: Solids Capacitive
