Easy installation on tank side using threaded process connection.
Operational for any liquids of specific gravity >0.6.
Rotating the sensor reverses switch operation
Wetted parts are in corrosion resistant SCS14 (316SS equivalent)
** If purchasing replacement part, just give us the serial number and we will supply the correct part.**
General Description
These miniature liquid level sensors are designed for reliable operation in small tanks and containers. Their rugged design and careful engineering make them the perfect solution for OEM and large volume applications.
Operational Description

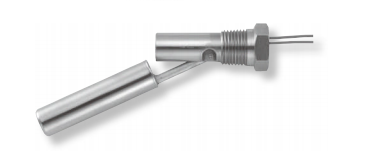

The float incorporates a magnet, and pivots on the pin. Reed switch is placed at the end of the process connection assembly. The switch closes when the float approaches, and opens as the float leaves the switch.
Horizontal mounting from outside container. 316 stainless steel construction.
Conformity
Hygienic standards of Food, additives, etc. by Japan Food Research Laboratories. Some of sensors are conformed by RoHS directive. Six materials such as Lead, Mercury,
Hexavalent Chromium, Polybrominated Biphenyls,Polybrominated Diphenyl Ethers, and Cadmium are not contained in these products.
Click on the buttons for full Nohken Specification catalog Sheet and User Manual
