Model VC - Small Vibration Sensor
- Suitable to detect powder and grain in a small or middle hopper.
- Operating temperature up to 150 ℃ as standard.
- Not affected by the temperature change.
- Accepts a wide range of input voltage.
** If purchasing replacement part, just give us the serial number and we will supply the correct part.**
General Description
The vibration sensor, Model VC12 is used for level detection of solids, fine powder, granular, pellets and sediments under the liquids such as sludge and sand. The output signal from the sensor is used for the alarm and/or control of electromagnetic switch. When the detection pipe is covered.
Operational Description
The vibration rod of new VC series is constructed by using the electro magnet and the permanent magnet. When the electro magnet is energized, the electro magnet and permanent magnet are attracted and repulsed. This movement makes vibration
The construction of vibration probe is similar to the motor. When the motor is energized by the battery, the back electromotive current is generated by the influence of permanent magnet and coil. When the vibration rod is covered with solids or powdered material, the current flowing to the lead wire is increased by damping of the back electromotive current. The amplifier detects this shifting of current laval, and converts to output signal.
Click on the buttons for full Nohken Specification catalog Sheet and User Manual
Catalog User ManualModel | VC12N | VC12F |
---|---|---|
Measuring Object | Powder, Granular material | |
Mounting | R3/4 | JIS5K50A FF |
Supply power | 100 to 240V AC 50/60Hz | |
Power Consumption | Approx. 5VA (100V AC) | |
Relay Output | Non-voltage relay contact (SPDT) 250V 3A AC /30V 3A DC | |
Detection Time Delay | Approx. 3 to 5 seconds for covered Approx. 3 to 5 seconds for free | |
Operating Temperature - Housing | -20 to 60 ℃ | |
Operating Temperature - Vibration Rod | -20 to 150 ℃ | |
Maximum Pressure | 2 MPa (Except a mounting part) | |
Concentrated Load | 0.55 kN Max. (at the tip of detection pipe) | |
Maximum Humidity | 95% RH | |
Sensitivity | Bulk density of 0.2g/cm2 Min. | |
Vibration Frequency | Approx. 900 to 1100Hz | |
Housing Material | ADC12 | |
Vibration Rod Material | 304SS | |
Cable Entry | G3/4 | |
Protection - Housing | IP65 | |
Protection - Vibration Rod | IP68 | |
Fail Safe | High or Low by switch | |
Indication | Green LED for Power status, Red LED for Relay status |

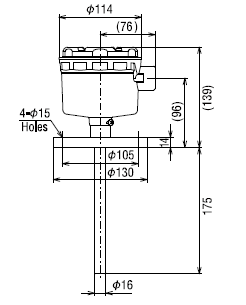

Technical drawing of Nohken Model VC Vibrating Level Sensor.


For ordering replacement part, please supply full serial number
** If purchasing replacement part, just give us the serial number and we will supply the correct part.**
