Compact and light weight, but integral construction
NPN open collector can be directly connected to the relay output
Operational indicator is provided
Easy to adjust sensitivity by adjusting knob

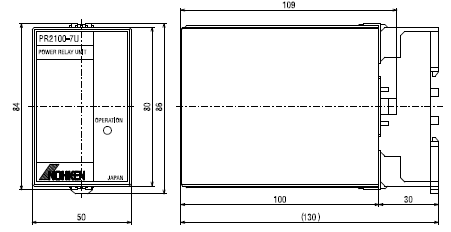

PR21 00-7U is a Power Relay Unit for KSV-9N series
2-SPST relay output and self-holding control are available by using PR2100-7U
** If purchasing replacement part, just give us the serial number and we will supply the correct part.**
General Description
KSV-9N series are designed to use in small tank and suitable for the built-in level sensor of small or mass production devices. This sensor can detect general application of both liquids and solids. The option of plastic covered probe is available for conductive medium such as aqueous solution, grain and sugar contained moisture, metal power and so on.

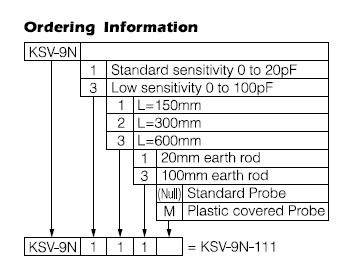

Description of Model Number
Electrode
Stainless Steel Probe Type
Plastic Covered Prove Type
Length of L2
20mm
100mm
20mm
100mm
Length of L1
Model Number
Model Number
Model Number
Model Number
150mm
KSV-9N-111
KSV-9N-113
KSV-9N-111M
KSV-9N-113M
300mm
KSV-9N-121
KSV-9N-123
KSV-9N-121M
KSV-9N-123M
600mm
KSV-9N-141
KSV-9N-143
-
-
Click on the buttons for full Nohken Specification catalog Sheet and User Manual
