Cermak Engineering - Nohken Official Distributor

With over 30 years experience in the development and manufacture of Level Switches, Nohken are one of Japan's leading level sensor manufacturers supplying all types of level sensors to some of the worlds leading Companies. Cermak engineering have been distributing Nohken Level Sensors for more than ten years. We know the products and can guarantee a quick supply process. Whether you are looking for a replacement Nohken part,are a manufacturer looking for a solution or just need a single level sensor for a specific application, we can help and advise you to find the right part.

Point level detection Sensors

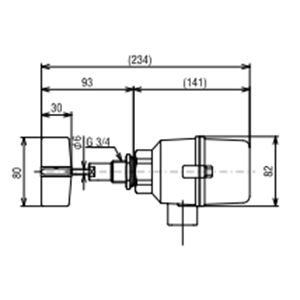

Model R7

Miniature Rotating Paddle Sensor

Applications: plastic molding or injection machines and extruders, grain processing machines, granulating equipment. Suitable for extreme low densities (12 g/l)

Other Point level detecting sensors

Powder level sensor Nohken Microwave level sensor
new products

Featured Products

Model PLD

Model PLD Hydrostatic Pressure Level Monitor


Ideal for use in water reservoirs, rivers, dams and Tanks.

The PLD series, hydrostatic liquid level monitor, is comprised of a sensor as PLD120, PLD13 etc and converter as PL2500, PL2510. The maximum measuring range is up to 100 meters.

Contact us for pricing and more details

Click on the datesheet icon below to see detailed specifications

Model VL

Model VL Vibration Level Sensor


Model VL is designed to detect powders, solids, granular material including such very light powders as instant coffee, powdered milk, iron oxide, and toner for use in medium and/or large sized hopper. There are several versions available to meet a variety of hopper/silo operations.

Contact us for pricing and more details

Click on the datesheet icon below to see detailed specifications

Model K

Compact Type Capacitive Level Sensor - Model KRC & KSC Series


Looking for a Capacitive level sensor?

Nohken is here for you! Capacitance level sensor measures a level comparing dielectric constant of the material to be measured with that of air/vacuum. Dielectric constant (dK) is unique to material, so this type of sensor can suit a wide range of applications.

Contact us for pricing and more details

Click on the datesheet icon below to see detailed specifications

Model OL

Miniature Liquid Level Sensor


Simple and Low Cost Solution for Liquid Level Measurement

These miniature liquid sensors are designed for reliable operation in small tanks and containers. Their rugged design and careful engineering make them the perfect solution for OEM and build in sensor for mass-produced products.

Contact us for pricing and more details

Click on the datesheet icon below to see detailed specifications

Model MS

Magnetostrictive Level Measurement


Solution for highly accuracy applications such as chemical or blending tank measurement.

Groundbreaking sensor with high accuracy (±1mm or ±0.1% F.S.) and high resolution based on the Wiedemann effect. Effective solution for level measurement of chemical, blending, and storage tanks, and also for position detection.

Contact us for pricing and more details

Click on the datesheet icon below to see detailed specifications

Nohken Level Sensor Information

Move the mouse over the sensors on the picture for a summary of features or click on the image of the model for datasheets, manuals and drawings.

Nohken OX Optical Interface Sensor
Model OX

Model OX optical interface sensor consists of a sensing probe and a separate electronic converter. Sediments, suspended solids, and interface of immiscible liquids are detected by using an infrared transmission operating principle.

Nohken point level conductive liquids level sensor
Model FE

FE series of level sensors is designed for point level indication of conductive liquids.

Nohken air bubbler level sensors
Model LA

LA series air bubbler is simple and proven level measurement system for dirty wastewater treatment. The bubble tube is the only component in contact with the liquids.

Nohken simple float switch
Model FS

FS is a simple float switch for top mounting in open tanks. FS can be installed by bulkhead, screw-in or flange mounting. This sensor is designed for use in hydraulic units, boilers, magnetic cooling equipment, irrigation systems, etc.

Nohken custom liquid level sensors
Model FR

FR20 and OLV-20 custom level sensors are engineered and manufactured to meet demanding customer applications for liquid level sensing.

Nohken magnostrictive level sensor
Model MS

MS series, magnetostrictive level measurement, is especially designed for precision measurement. MS is ideal for continuous level monitoring of storage and shipment for oil, beer and other beverages, pharmaceuticals, etc.

Nohken cable suspended float sensor
Model FT

FT series cable suspended float sensor is designed for high or low level indication. FT series is miniature switch actuated design ideally suited to operate pumps, valves and similar equipment used in the sewage or municipal wastewater treatment plant.

Nohken pneumatic liquid level sensor
Model FP

FP series pneumatic liquid level sensor is a diaphragm actuated sensor. It is designed for use in high viscous liquids. The moving part is only diaphragm, which is not contact with the liquid, moved by the compressed air inside of pipe and chamber.

Nohken custom continuous level sensor
Model LR

The LR series, custom continuous level sensors, are designed to meet demanding customer requirements for reliable operation. Models are available in lengths up to 3900mm with a variety of mounting configurations..

Nohken cable suspended float sensor
Model FT

FT series cable suspended float sensor is designed for high or low level indication. FT series is miniature switch actuated design ideally suited to operate pumps, valves and similar equipment used in the sewage or municipal wastewater treatment plant.

Nohken Microwave level sensor
Model MWS

MWS-ST-11/ MWS-SR-11 microwave level sensor is a level sensor consisting of a transmitter (MWS-ST-11) and a receiver (MWS-SR-11) installed face to face. The transmitter emits a continuous, low power microvave beam towards the receiver and an output relay is released when the beam is obstructed.

Nohken miniature rotating paddle sensor
Model R7

R7 series of miniature rotating paddle sensors is designed for use with plastic molding or injection machines and extruders. It can also be designed into equipment such as grain processing machines and granulating equipment. R7 series is the most compact units of their type and are designed to provide reliable services.

Nohken side mounted level sensor
Model FM

FM series, side-mounted level sensor, is manufactured specifically for level detection in clean liquids such as oils, water and chemicals. It is designed for horizontal mounting in a tank or vessel through flanged or threaded connections. To suit many different level sensing situations, a wide variety of models are available.

Nohken Accoustical level sensor
Model AF

AF10 is a self contained acoustical sensor that detects the audible noise made by powders or grains in a pipe or conveyor. It may also be used to detect audible noise on mechanical equipment for preventive maintenance.

Nohken miniature liquid level switches
Model OL

Miniature liquid level switches are designed for reliable operation in small tanks and containers. Their rugged design and careful engineering make them perfect solutions or OEM and large volume applications.

Nohken point level detection
Model K

K series is made specifically for point level detection of liquids, solids or interface of two immiscible liquids.

Nohken powder level sensor
Model VL

Model VL is designed to detect powders, solids, granular material including such very light powders as instant coffee, powdered milk, iron oxide, and toner for use in medium and/or large sized hopper.

Nohken cable suspended float sensors
Model FQ

FQ-6 and FQ-8 cable suspended float sensors are designed to provide the control signals for a differential pump control system. These top mounting sensors are suitable for use in a wide variety of open tanks or vessels.

Model C5

CL

Nohken optical interface sensor
Model OX

Model OX optical interface sensor consists of a sensing probe and a separate electronic converter. Sediments, suspended solids, and interface of immiscible liquids are detected by using an infrared transmission operating principle.

Nohken compact level sensor for hoppers
Model VM

VM series is designed for use in small hoppers up to 2 meters in height. This compact level sensor is suitable for bulk handling bins, hoppers, feeders, etc. It helps prevent hopper overflow, empty holding tanks, and plugged chutes.

Nohken hydrostatic liquid level monitor
Model PL

PL series, hydrostatic liquid level monitor, is comprised of a sensor and converter. This combination allows measuring of depth up to 100 meters. PL series is ideal for use in water reservoirs, rivers, dams, deep wells, water gates, and deep tanks.

Paddle Rotation leveler, Vibrating level sensor, Microwave Level Sensing - Capacitance level sensor, Explosion Proof oil and water level detection:, Single Point Switching level sensing, Multiple Point Switching level sensors, Air Bubbler level sensors, Magnetostrictive level sensor, Hydrostatic Pressure level sensor, Resistive Chain level, Level controller sensors,Level switch, Water level controller, Liquid level monitor, flow sound monitor
